Tire to Oil Machine

Beston tire to oil machine aims at turning waste tyre to high value. Through pyrolysis technology, this machine turns waste tyre to usable oil. We also can get by-products (carbon black and steel wire) from this plant. At the same time, this plant is conducive to reduce “black pollution” which is the most concerned issue for people. Accordingly, this waste tyre oil plant project is worthy of your investment. When you have any intention to start this business, consult us at any time.

Tire to Oil Machine
Beston Tire to Oil Machine with Environment-friendly Design

Deciding Factors of Tyre to Oil Plant Cost:

When you decide to set up a tyre oil plant, the most important matter is how much you will spend. Read the following content to get useful tips:

1. The configuration of tyre to oil plant. Firstly, you must make sure which model of tire to oil machine is suitable for you and the number of tire oil machine. Secondly, it is necessary for you to know which part device you need, such as crusher, dryer, etc. Beston Machinery feels honourable to help you to design waste tyre to oil plant and make a clear order list.

2. Scale of tyre to oil plant. When starting tyre recycling business, many people choose small-scale waste tyre pyrolysis plant which just needs less area. Some investors starts with large-scale tire to oil plant which requires high demand for area and cost.

3. Employee cost. Before beginning operating tire to fuel plant, it is necessary for investors to find enough workers to make production process smooth. Employee cost is a factor investor can’t be ignored.

Tyre Oil Machine
Beston Tyre Oil Machine with Competitive Price
Tyre Oil Plant
Affordable Beston Tyre Oil Plant Price

Basic Parameter of Beston Pyrolysis Machine for Sale:

Model BLJ-6 BLJ-10 BLJ-16 BLL-20
Daily Capacity 6T 8T-10T 15-20T 20-24T
Working Method Batch Semi-Continuous Fully Continuous
Raw Materials Waste Plastic, Tyre, Rubber, Oil Sludge
Reactor Size D2.2*L6.0m D2.6*L6.6m D2.8*L7.1m D1.4*L11m
Pattern Horizontal & Rotary
Heating Materials Charcoal, Wood, Fuel Oil, Natural Gas, LPG, etc.
Total Power 24kw/h 30kw/h 54kw/h 71.4kw/h
Floor Area (L*W*H) 30*10*8m 30*10*8m 40*10*8m 45*25*10m
Operating Pressure Normal Pressure Constant Pressure
Cooling Method Water Cooling
Life Span 5-8 Years

Successful Cases of Beston Tyre to Oil Plant Project:

Up to now, Beston tyres to oil machinery has been exported to numerous countries, such as Indonesia, Romania, South Korea, Indonesia, South Africa, the Philippines, Turkey, Hungry, etc. Beston Group dispatched experienced engineers to their sites. Engineers assisted customers to install the tires to oil pyrolysis machine. After the finish of installation, we will have periodical call to provide technical support.

Tire Oil Plant
Beston Tire Oil Plant in Indonesia
Waste Tyre Oil Plant
Beston Waste Tyre Oil Plant in Indonesia

Usages of Oil, Carbon Black and Steel Wire Obtained from Tire to Oil Machine for Sale:

Products Usage
Pyrolysis oil • can be sold directly.
• Reprocessed into diesel by waste oil distillation machine.
• can be used as fuel for iron factory, power plant, cement factory, restaurant, etc.
Carbon black • can be sold directly.
• Reprocessed into high-quality carbon by the carbon black processing plant.
• make carbon brick by briquetting equipment.
Steel wire • can be sold directly.
Combustible  gas • can be used as fuel heating the reactor.
Pyrolysis Oil
Pyrolysis Oil
carbon black
Carbon Black
steel wire
Steel Wire

Advantages of Each Part in Waste Tire to Oil Plant:

1. Reactor with safety design and sealed operation process. Firstly, the working method of reactor is fully sealed which won’t generate dust in the air. Secondly, the reactor is equipped with thermometer and pressure gauge to provide a safe working environment.

2. Casing with several insulation materials. There are three layers in the space between of case and reactor, including refractory cement, stone and aluminum silicate cotton. These materials are able to keep the heat for the reactor well. Moreover, this casing in the tyre recycling plant effectively avoids scalding of workers.

3. PLC to monitor the condition of tire to oil plant. PLC always plays a significant role in tire oil plant. Because of this part, this plant is easier to manage. Besides, if there is an accident happening, workers can stop the operation of tyre to oil machine in time.

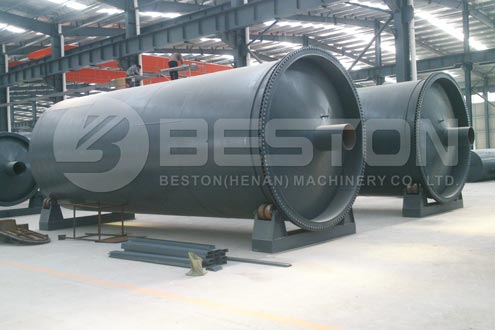

Tyre to Oil Reactor
Tyre to Oil Reactor
Casing
Casing
PLC
PLC

4. Condenser with two special designs. There are mainly two types of condensers. The one is to cool the oil gas. This condenser has many tubes to enhance cooling efficiency. The other one with large-sized tube is to decrease the temperature of waste smoke.

5. De-dusting machine to reduce pollution. Waste smoke can’t be discharged directly. After cooling, waste smoke will go through water washing, water spray and ceramic ring adsorption. Finally, discharged smoke from tires to oil machine meets the requirement of European emission.

6. Reducer to prolong the service life of the plant. Every set of tire to fuel plant will be equipped with several reducers. Reducers are helpful to reduce the damage caused by the high-speed operation and to prolong the service life of pyrolysis machine.

condenser
Condenser
Dedusting System
Dedusting System
Reducer
Reducer

Benefits of Tyre Recycling into Fuel Oil in Indonesia:

1. Converting waste tyre to treasure. Waste tyre is always called black pollution. This waste not only occupies large area but also has less value in Indoneisa. Recycling tires into bio-fuel is the best way to reshape its value. Because of this, many customers choose to invest tyre into oil machine.

2. Avoiding polluting environment. Waste tyre easily breeds diseases. Besides, this tyre also brings harm to the soil and the water. The polluted soil and water is detrimental to future generations in Indonesia. Adopting tyre to oil machine is a great way to largely decrease the number of tyre.

3. Creating economic value for the local area. Firstly, final products and by-products have high economic value in Indonesia. Secondly, this pyrolysis plant project will drive the development of the related industry. Thirdly, due to joining of this business, employment rate will be greatly improved.

Tyre to Fuel Recycling Plant
Beston Tyre to Fuel Recycling Plant-3D Model

Tyre to Oil Recycling Process:

Oil Process
Tyre to Oil Recycling Process

Beston tire to oil machine adopts latest pyrolysis technology to convert tyres to oil. After upgraded, this tyres to oil machine has better functions and safe design. If you purchase our machine at present, we will offer you competitive tyre to oil machine price.
